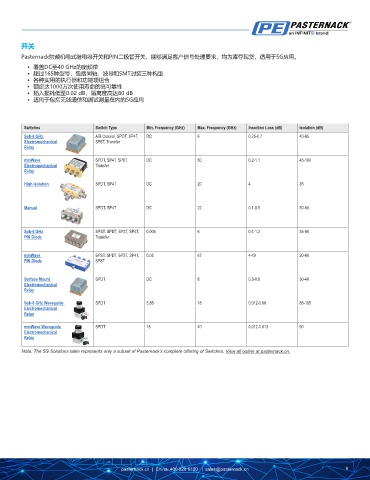

Page 9 - 5G方案产品组合

开关

Pasternack射频机电式继电器开关和PIN二极管开关，能够满足客户信号处理要求，均为库存现货，适用于5G应用。
• 覆盖DC至40 GHz的宽频带
• 超过165种型号，包括同轴、波导和SMT封装三种构型
• 各种实用的执行器和功能项组合
• 额定达1000万次使用寿命的高可靠性
• 插入损耗低至0.02 dB，隔离度高达80 dB
• 适用于包括无线通信和测试测量在内的5G应用

Switches Switch Type Min. Frequency (GHz) Max. Frequency (GHz) Insertion Loss (dB) Isolation (dB)
Sub-6 GHz A/B Coaxial, SPDT, SP4T, DC 6 0.25-0.7 40-85
Electromechanical SP6T, Transfer
Relay
mmWave SPDT, SP4T, SP6T, DC 50 0.2-1.1 45-100
Electromechanical Transfer
Relay

High Isolation SPDT, SP4T DC 20 4 35

Manual SPDT, SP4T DC 22 0.1-0.5 50-80

Sub-6 GHz SPST, SPDT, SP3T, SP4T, 0.005 6 0.4-1.2 35-80
PIN Diode Transfer

mmWave SPST, SPDT, SP3T, SP4T, 0.05 67 4-10 20-60
PIN Diode SP8T

Surface Mount SPDT DC 8 0.3-0.8 30-40
Electromechanical
Relay

Sub-6 GHz Waveguide SPDT 5.85 18 0.012-0.08 85-105
Electromechanical
Relay

mmWave Waveguide SPDT 18 40 0.012-0.013 90
Electromechanical
Relay

Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Switches. View all online at pasternack.cn.
