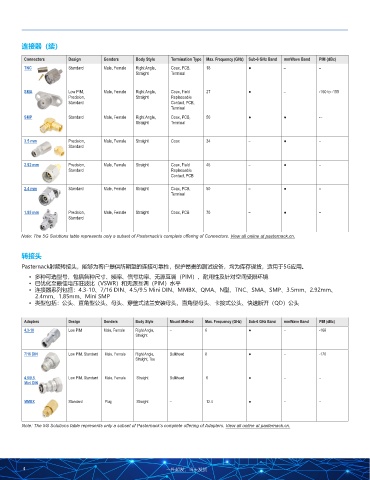

Page 4 - 5G方案产品组合

连接器（续）

Connectors Design Genders Body Style Termination Type Max. Frequency (GHz) Sub-6 GHz Band mmWave Band PIM (dBc)
TNC Standard Male, Female Right Angle, Coax, PCB, 18 ● – –
Straight Terminal

SMA Low PIM, Male, Female Right Angle, Coax, Field 27 ● – -160 to -155
Precision, Straight Replaceable
Standard Contact, PCB,
Terminal
SMP Standard Male, Female Right Angle, Coax, PCB, 50 ● ● -–
Straight Terminal

3.5 mm Precision, Male, Female Straight Coax 34 – ● –
Standard

2.92 mm Precision, Male, Female Straight Coax, Field 45 – ● –
Standard Replaceable
Contact, PCB
2.4 mm Standard Male, Female Straight Coax, PCB, 50 – ● –
Terminal

1.85 mm Precision, Male, Female Straight Coax, PCB 70 – ● –
Standard

Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Connectors. View all online at pasternack.cn.

转接头
Pasternack射频转接头，能够为客户提供所期望的连接可靠性，保护昂贵的测试设备，均为库存现货，适用于5G应用。
• 多种可选型号，包括各种尺寸、频率、信号功率、无源互调（PIM）、耐用性及针对空间受限环境
• 已优化至最佳电压驻波比（VSWR）和无源互调（PIM）水平
• 连接器系列包括：4.3-10、7/16 DIN、4.5/9.5 Mini DIN、MMBX、QMA、N型、TNC、SMA、SMP、3.5mm、2.92mm、
2.4mm、1.85mm、Mini SMP
• 类型包括：公头、直角型公头、母头、穿壁式法兰安装母头、直角型母头、卡接式公头、快速断开（QD）公头

Adapters Design Genders Body Style Mount Method Max. Frequency (GHz) Sub-6 GHz Band mmWave Band PIM (dBc)
4.3-10 Low PIM Male, Female Right Angle, – 6 ● – -168
Straight

7/16 DIN Low PIM, Standard Male, Female Right Angle, Bulkhead 8 ● – -170
Straight, Tee

4.5/9.5 Low PIM, Standard Male, Female Straight Bulkhead 6 ● – –
Mini DIN

MMBX Standard Plug Straight – 12.4 ● – –

Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Adapters. View all online at pasternack.cn.

4 一件起发，当天发货
