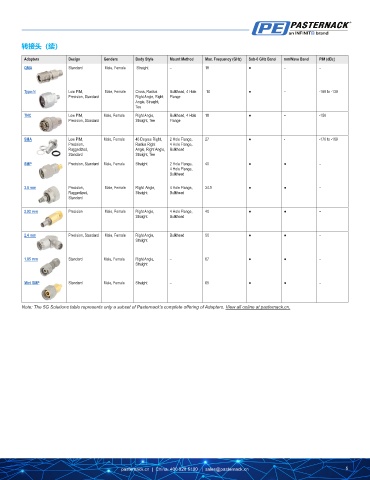

Page 5 - 5G方案产品组合

转接头（续）

Adapters Design Genders Body Style Mount Method Max. Frequency (GHz) Sub-6 GHz Band mmWave Band PIM (dBc)
QMA Standard Male, Female Straight – 18 ● – –

Type-N Low PIM, Male, Female Cross, Radius Bulkhead, 4 Hole 18 ● – -168 to -130
Precision, Standard Right Angle, Right Flange
Angle, Straight,
Tee
TNC Low PIM, Male, Female Right Angle, Bulkhead, 4 Hole 18 ● – -150
Precision, Standard Straight, Tee Flange

SMA Low PIM, Male, Female 45 Degree Right, 2 Hole Flange, 27 ● - -170 to -160
Precision, Radius Right 4 Hole Flange,
Ruggedized, Angle, Right Angle, Bulkhead
Standard Straight, Tee
SMP Precision, Standard Male, Female Straight 2 Hole Flange, 40 ● ● –
4 Hole Flange,
Bulkhead

3.5 mm Precision, Male, Female Right Angle, 4 Hole Flange, 34.5 ● ● –
Ruggedized, Straight Bulkhead
Standard

2.92 mm Precision Male, Female Right Angle, 4 Hole Flange, 40 ● ● –
Straight Bulkhead

2.4 mm Precision, Standard Male, Female Right Angle, Bulkhead 50 ● ● –
Straight

1.85 mm Standard Male, Female Right Angle, – 67 ● ● –
Straight

Mini SMP Standard Male, Female Straight – 65 ● ● –

Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Adapters. View all online at pasternack.cn.
