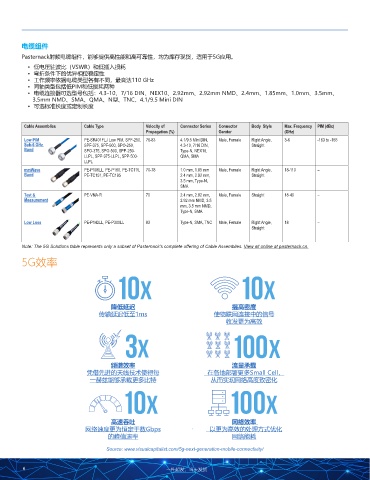

Page 6 - 5G方案产品组合
P. 6
电缆组件
Pasternack射频电缆组件，能够提供高性能和高可靠性，均为库存现货，适用于5G应用。
• 低电压驻波比（VSWR）和低插入损耗
• 弯折条件下的优异相位稳定性
• 工作频率依据电缆类型各有不同，最高达110 GHz
• 同轴类型包括低PIM和低损耗两种
• 电缆连接器可选型号包括：4.3-10、7/16 DIN、NEX10、2.92mm、2.92mm NMD、2.4mm、1.85mm、1.0mm、3.5mm、
3.5mm NMD、SMA、QMA、N型、TNC、4.1/9.5 Mini DIN
• 可选标准长度或定制长度
Cable Assemblies Cable Type Velocity of Connector Series Connector Body Style Max. Frequency PIM (dBc)
Propagation (%) Gender (GHz)
Low PIM PE-SR401FLJ Low PIM, SPF-250, 76-83 4.1/9.5 Mini DIN, Male, Female Right Angle, 3-6 -163 to -155
Sub-6 GHz SPF-375, SPF-500, SPO-250, 4.3-10, 7/16 DIN, Straight
Band SPO-375, SPO-500, SPP-250- Type-N, NEX10,
LLPL, SPP-375-LLPL, SPP-500- QMA, SMA
LLPL
mmWave PE-P106LL, PE-P160, PE-TC110, 70-78 1.0 mm, 1.85 mm Male, Female Right Angle, 18-110 –
Band PE-TC151, PE-TC195 2.4 mm, 2.92 mm, Straight
3.5 mm, Type-N,
SMA
Test & PE-VNA-R 70 2.4 mm, 2.92 mm, Male, Female Straight 18-40 –
Measurement 2.92 mm NMD, 3.5
mm, 3.5 mm NMD,
Type-N, SMA
Low Loss PE-P142LL, PE-P300LL 83 Type-N, SMA, TNC Male, Female Right Angle, 18 –
Straight
Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Cable Assemblies. View all online at pasternack.cn.
5G效率
降低延迟
提高密度
Decrease in Latency Connection Density
Delivering latency as low as 1 ms Enabling more efficient signaling
使物联网连接中的信号
传输延迟低至1ms
for IoT connectivity
收发更为高效
频谱效率
流量承载
Spectrum Efficiency Traffic Capacity
Achieving even more bits per Hz with Driving network hyper-densification with
凭借先进的天线技术使得每
在各地部署更多Small Cell，
advanced antenna techniques more small cells everywhere
从而实现网络高度致密化
一赫兹能够承载更多比特
网络效率
高速吞吐
Experience Throughput Network Efficiency
网络速度更为恒定于数Gbps
Bringing more uniform, multi-Gbps Optimizing network energy comsumption
以更为高效的处理方式优化
peak rates
网络能耗
的峰值速率 with more efficient processing
Source: www.visualcapitalist.com/5g-next-generation-mobile-connectivity/
