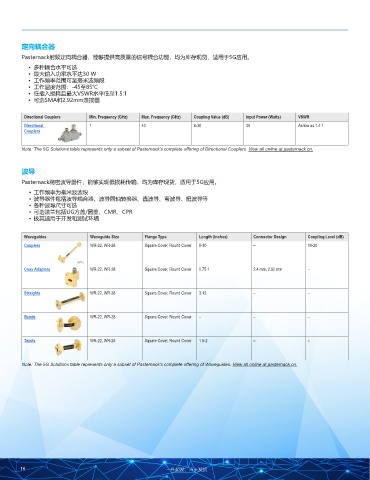

Page 16 - 5G方案产品组合

定向耦合器
Pasternack射频定向耦合器，能够提供高质量的信号耦合功能，均为库存现货，适用于5G应用。
• 多种耦合水平可选
• 最大输入功率水平达30 W
• 工作频率范围可至毫米波频段
• 工作温度范围：-45至85℃
• 低插入损耗且最大VSWR水平低至1.5:1
• 可选SMA和2.92mm连接器

Directional Couplers Min. Frequency (GHz) Max. Frequency (GHz) Coupling Value (dB) Input Power (Watts) VSWR
Directional 1 40 6-30 30 As low as 1.4:1
Couplers

Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Directional Couplers. View all online at pasternack.cn.

波导

Pasternack精密波导器件，能够实现低损耗传输，均为库存现货，适用于5G应用。
• 工作频率为毫米波波段
• 波导器件包括波导耦合器、波导同轴转换器、直波导、弯波导、扭波导等
• 各种波导尺寸可选
• 可选法兰包括UG方盖/圆盖、CMR、CPR
• 极其适用于开发和测试环境

Waveguides Waveguide Size Flange Type Length (inches) Connector Design Coupling Level (dB)
Couplers WR-22, WR-28 Square Cover, Round Cover 8-10 – 10-20

Coax Adapters WR-22, WR-28 Square Cover, Round Cover 0.75-1 2.4 mm, 2.92 mm –

Straights WR-22, WR-28 Square Cover, Round Cover 3-12 – –

Bends WR-22, WR-28 Square Cover, Round Cover – – –

Twists WR-22, WR-28 Square Cover, Round Cover 1.5-2 – –

Note: The 5G Solutions table represents only a subset of Pasternack’s complete offering of Waveguides. View all online at pasternack.cn.

16 一件起发，当天发货
