SMA公头直角型转SMA公头直角型电缆组件

SMA公头直角型转反极性SMA公头直角型电缆组件，使用RG174同轴电缆

产品编号PE3W05106
SMA Male Right Angle to Reverse Polarity SMA Male Right Angle Cable Using RG174 Coax

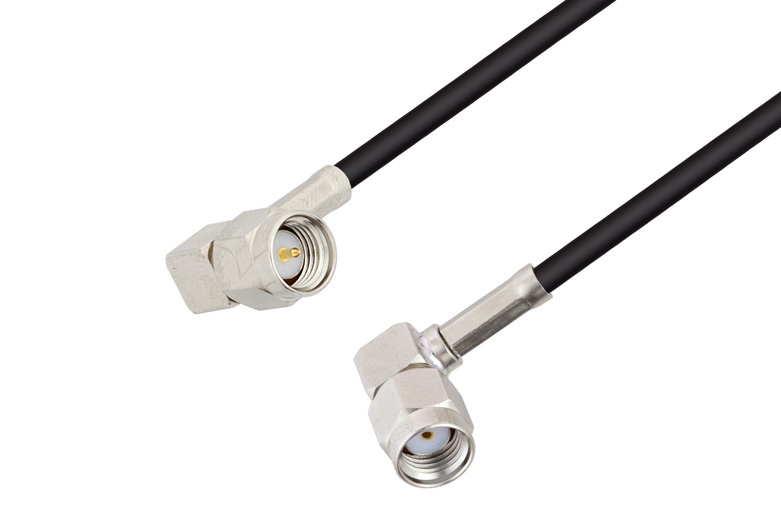

图片：  SMA Male Right Angle to Reverse Polarity SMA Male Right Angle Cable Using RG174 Coax high resolution
查看大图


点击这里PE3W05106数据
请输入长度来计算价格
标准长度
12 in.24 in.36 in.48 in.60 in.50 cm.100 cm.150 cm.200 cm.
长度定制
当天发货
长度：
*长度四舍五入到最近的英寸或厘米。为了获得精确的长度，请致电866-727-8376。

Click on the below images to access KitBOM product pages:


PE4009RG174A/UPE4785KitBOM Datasheet

Key Specifications (Click on Data Sheet Above for Additional Details).
Connector Series 1SMA
Connector Gender 1Male
Connector Polarity 1Standard
Connector Angle 1Right Angle
Connector Mount Method 1None
Connector Impedance 150 Ohm
Connector Series 2SMA
Connector Gender 2Male
Connector Polarity 2Reverse Polarity
Connector Angle 2Right Angle
Connector Mount Method 2None
Connector Impedance 250 Ohm
RF Cable Part NumberRG174A/U
RF Cable TypeRG174
RF Cable Impedance50 Ohm


SMA Male Right Angle to Reverse Polarity SMA Male Right Angle Cable Using RG174 Coax

PE3W05106 is a SMA male right angle to reverse polarity SMA male right angle cable using RG174 coax. This Pasternack SMA male right angle to reverse polarity SMA male right angle cable assembly uses a 50 Ohm SMA for connector 1 and a 50 Ohm SMA for connector 2. SMA right angle to SMA right angle coaxial cable assembly uses 90 degree right angle coax cable connector.

Our male SMA right angle to reverse polarity male SMA right angle cable assembly uses a flexible cable type that is 50 Ohm. Pasternack PE3W05106 SMA male right angle to SMA reverse polarity male right angle cable assembly is constructed with RG174 coax.
